DISC QSC E Series E112 12'' Passive PA Speaker

Full Description

View Full Description

E-Series Entertainment System

Each of QSC's E Series loudspeakers are designed to deliver incredible sound with any pro-grade power amp. However, if you take advantage of a complete E Series Entertainment System, you gain access to a whole new world of performance capabilities and options.

Use your E Series passive loudspeaker in combination with a QSC GXD or PLD power amp, or a QSC TouchMix digital mixer, and you can make full use of QSC's advanced DSP technology. E Series DSP settings have been meticulously designed for all three platforms. These support a broad range of situations, including live sound reinforcement, stage monitoring, DJ systems, and karaoke.

Legendary QSC build and reliability

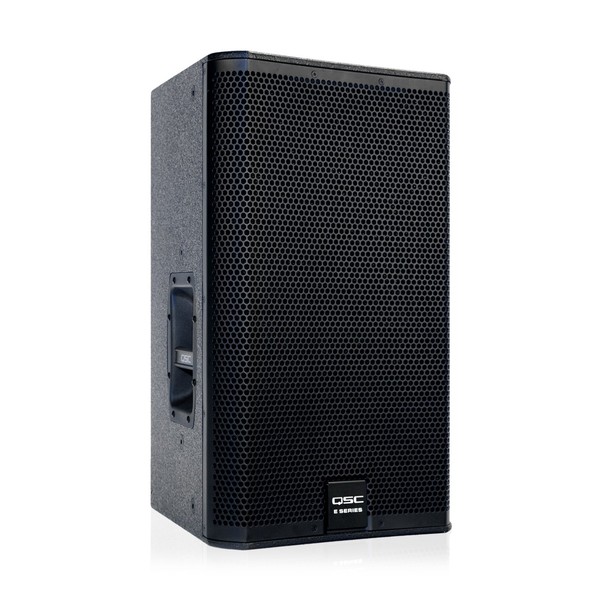

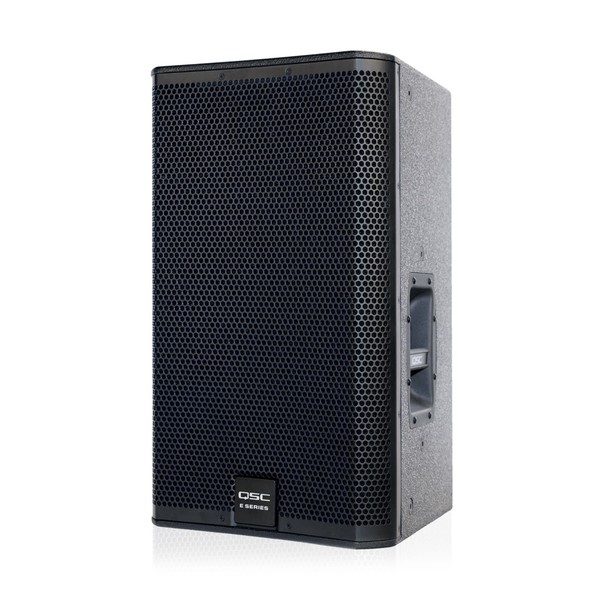

QSC are renowned for their road-ready construction. The E112 features a precision-made trapezoidal 15mm 11-ply enclosure with a powder-coated perforated steel grille. Rugged tour-grade textured paint keeps your cabinet looking great night after night. Built to deliver outstanding performance for portable and permanent applications, the E112 and its ultra-robust architecture ensures professional and reliable sound at every single show.

Directivity matched transition

One of the most unique features of the QSC E112 passive speaker is the innovative DMT (Directivity Matched Transition) technology. DMT was developed by QSC to ensure maximum coverage regardless of where you position the speaker. Producing 85° conical coverage, the E112 speaker minimises any wasted audio dispersion and prevents any 'muddy spots' that are often found in complex acoustic environments.

Features

• High-output 1 x 12'' 2-way passive PA speaker with professional sound quality and 400W (RMS) / 1600W (peak) power capacity
• Part of the QSC E Series Entertainment System - take advantage of advanced digital signal processing tunings and options using QSC's GXD and PLD amplifiers, or TouchMix digital mixers
  • E Series Entertainment System DSP Tunings are now available for PLD, CXD, and GXD processing amplifiers - for PLD/CXD, click here, and for GXD, click here

• Road-ready construction with a rugged trapezoidal plywood enclosure, tour-grade textured painted finish, and a foam-lined perforated steel grille
• U-Style Yoke and M8 Rigging Kit (not included, available separately) can be used for permanent installations
• Versatile dual-angle pole socket for safe and effective pole-mounting

Specifications

• Configuration: 1 x 12'', 2-way, non-powered
• Frequency Response:
  • -6dB: 64Hz - 20kHz
  • -10dB: 46Hz - 20kHz
• Power Capacity:
  • Continuous: 400W
  • Peak: 1600W
• Sensitivity: 96dB, 1W at 1m
• Coverage Angle: 85° conical DMT
• Output: 128dB (peak SPL at 1m)
• Drivers:
  • LF: 305mm (12'') driver with 76mm (3'') voice coil
  • HF: 25mm (1'') exit, 45mm (1.75'') voice coil, compression driver
• Nominal Impedance: 8 Ohms
• Cross-Over: Full range only, 1.8kHz

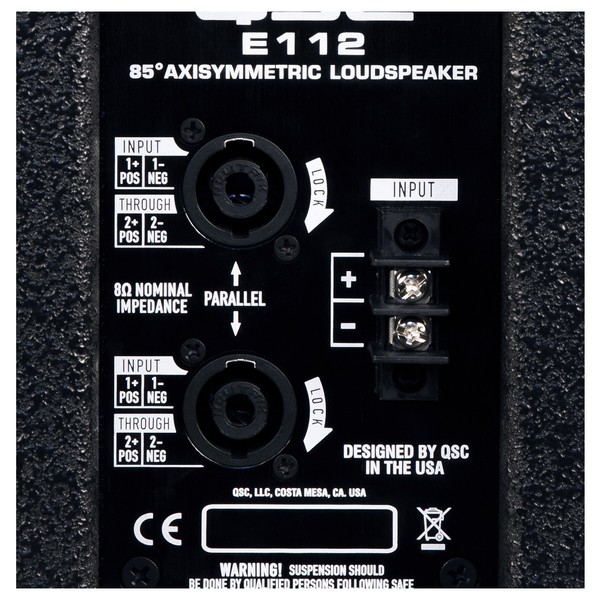

• Input Connections:
  • 2 x NL4
  • 1 x barrier strip
• Enclosure:
  • Shape: Trapezoidal
  • Material: Plywood
  • Finish: Black texture paint
  • Handles: 2 x side-mounted
  • Grille: Perforated powder-coated steel grille with foam lining
• Dimensions: 14.2'' x 24.2'' x 14.6'' / 360mm x 616mm x 371mm (W x H x D)
• Net Weight: 23 kg/51 lbs
